Unloads

Unloads are sweeps & augers that help get your grain from point A to point B in the easiest, most efficient fashion, without much grain left behind.

View Product Brochure


Paddle Sweep   |   Sioux U-Trough Unload   |   Grain Push System

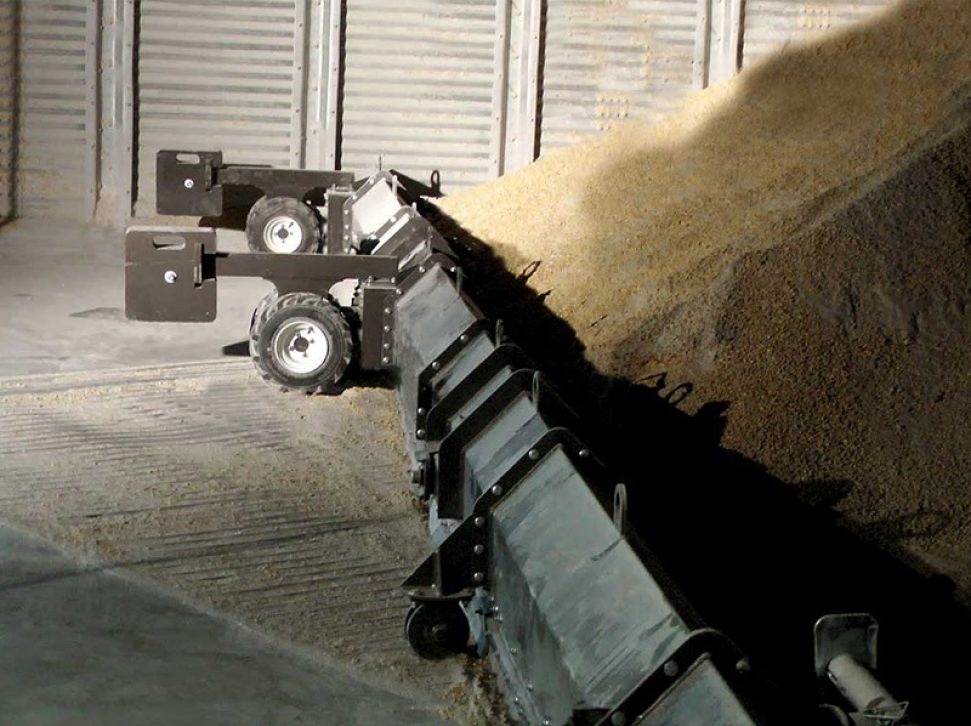

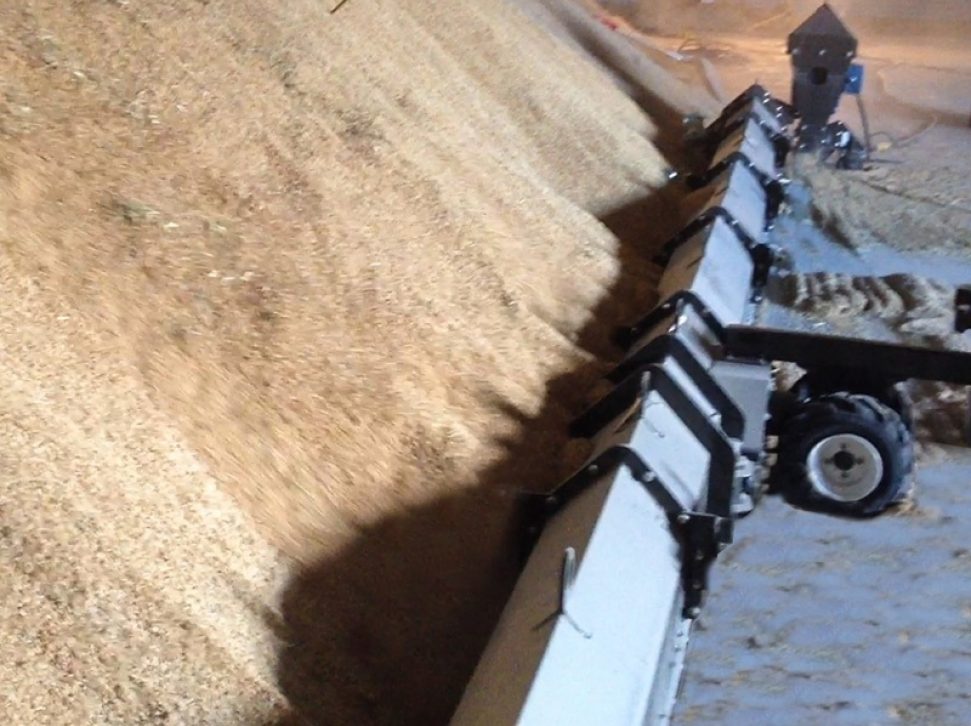

Daay Bin Paddle Sweep

The Daay Bin Paddle Sweep is designed to be fully submersed in grain and can unbury itself from a grain avalanche. The sweep is engineered to the most current specifications in the industry. There are has no dangerous augers to worry about and simply moves the grain with flexible rubber paddles. Explosion proof, all-weather quick change motors and tractor tread tires are among some of the features.

Features:

• Non jack system allows for minimal entry once Daay Bin Paddle Sweep has been started.
• Lower input power requirement compared to other sweeps.
• Does not plug or stall when overrunning the sweep.

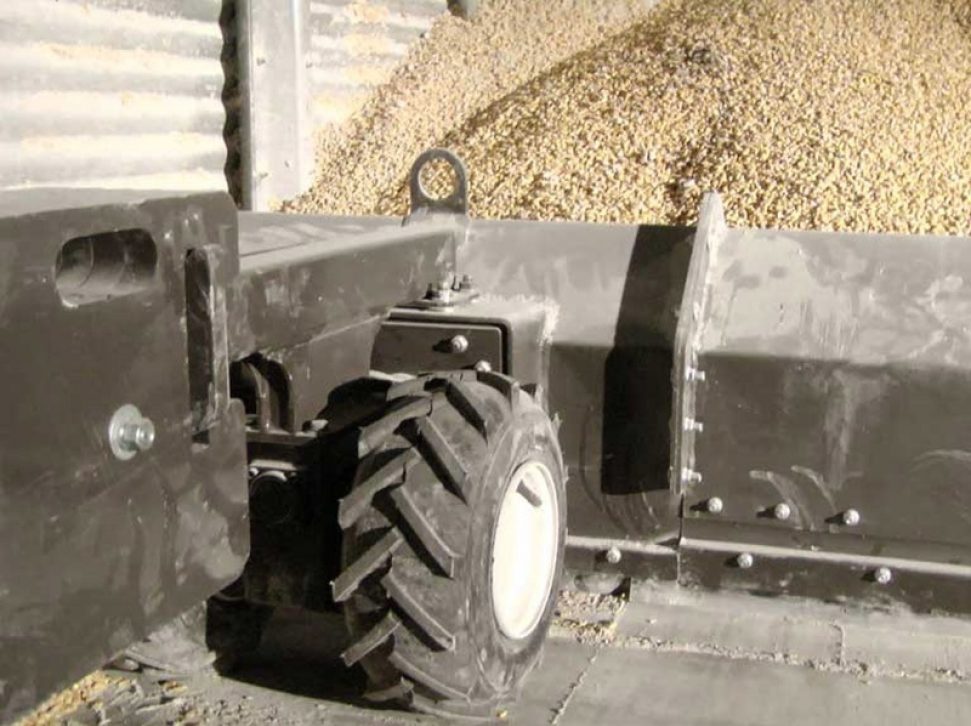

• Drive tire size: 13 x 5.00-6 super lug (foam filled).
• The tires are designed to slip to keep the sweep from climbing the pile.
• This allows the sweep to clean very close to the floor.
• Designed to be fully submersed in grain and can unbury itself from a grain avalanche.
• Housing is made out of 10 gauge material.
• Moves grain gently and evenly to sump.
• Explosion proof motor.
• Adjustable chain and motor mounts.


View Product Brochure

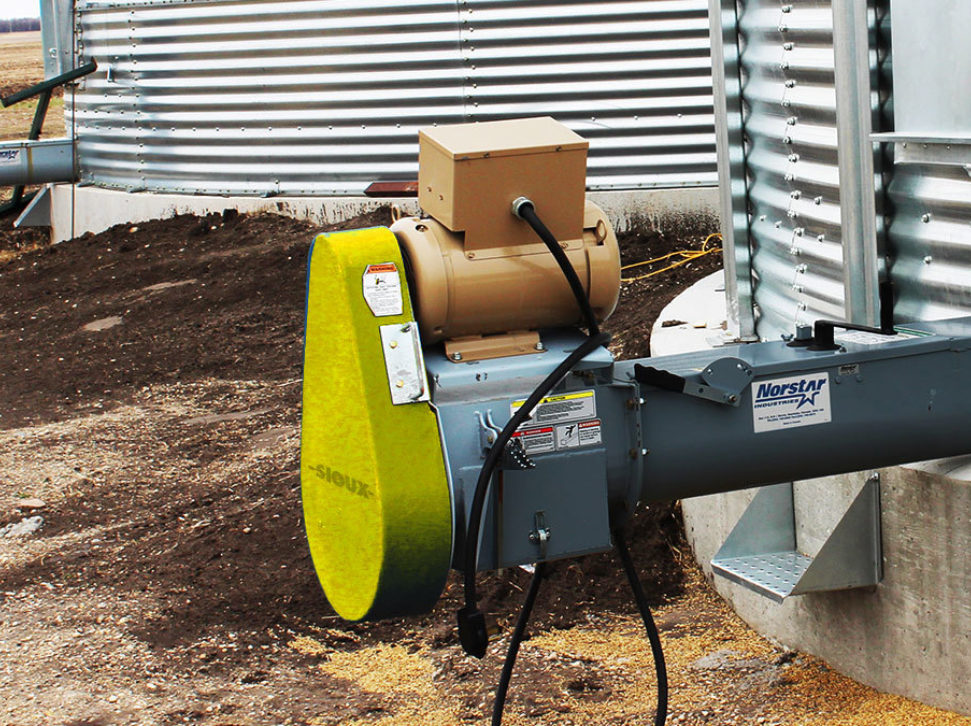

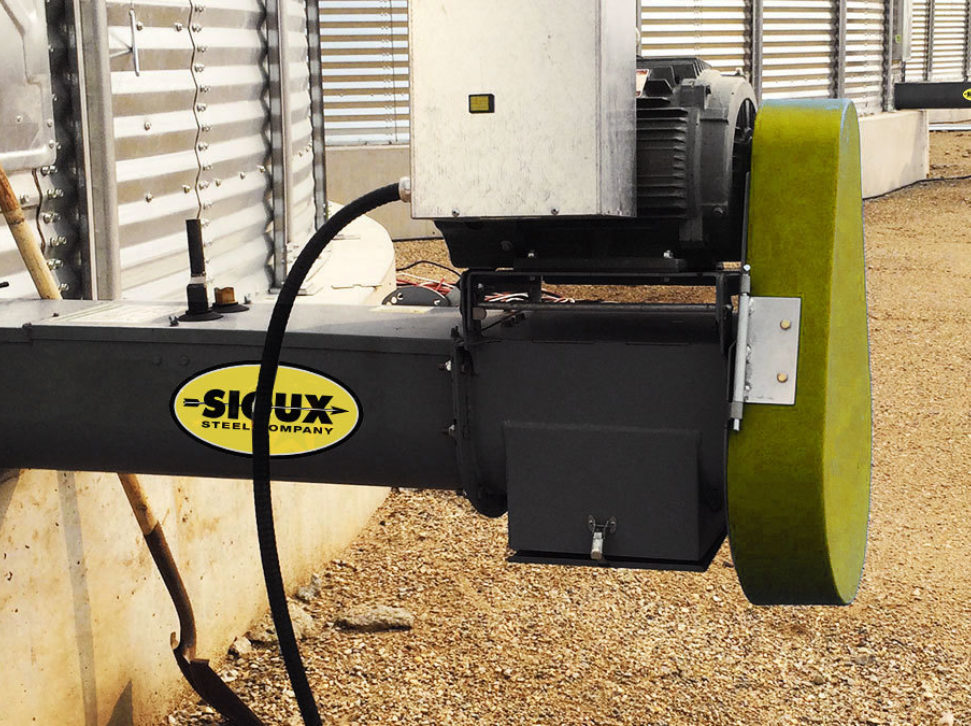

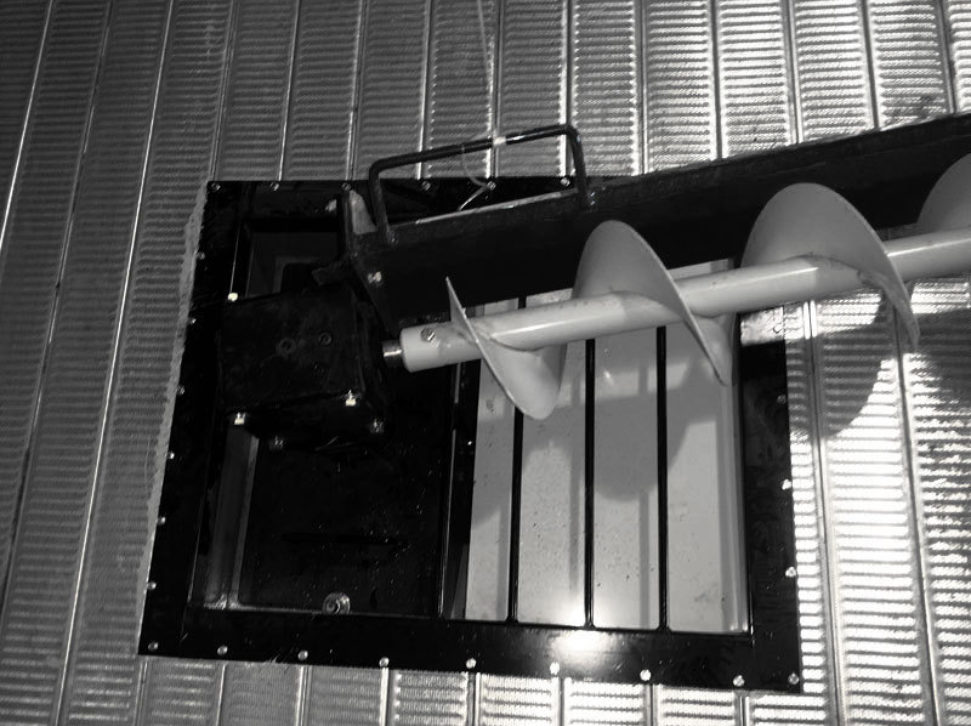

Sioux U-Trough Unload

LESS TIME AND MONEY ON INSTALL.
The unit is pre-assembled in our factory and shipped with no complicated assembly to be done on-site.

GET GRAIN IN THE TRUCK FASTER.
The combination of our Widemouth Center Sump which brings more grain into the unload during all 360° of sweep rotation and our offering of 11" and 14" U-Troughs, you can fill your trucks faster with higher capacities.

KEEP THE SWEEP MOVING.
Our SureGrip Wheel is second-to-none in keeping your bin sweep moving into the grain pile.

LESS GRAIN LEFT BEHIND THE SWEEP.
Our sweep backboard adjust, Deflector Plate and our new Wheel Shield option minimize the grain left behind the bin sweep.

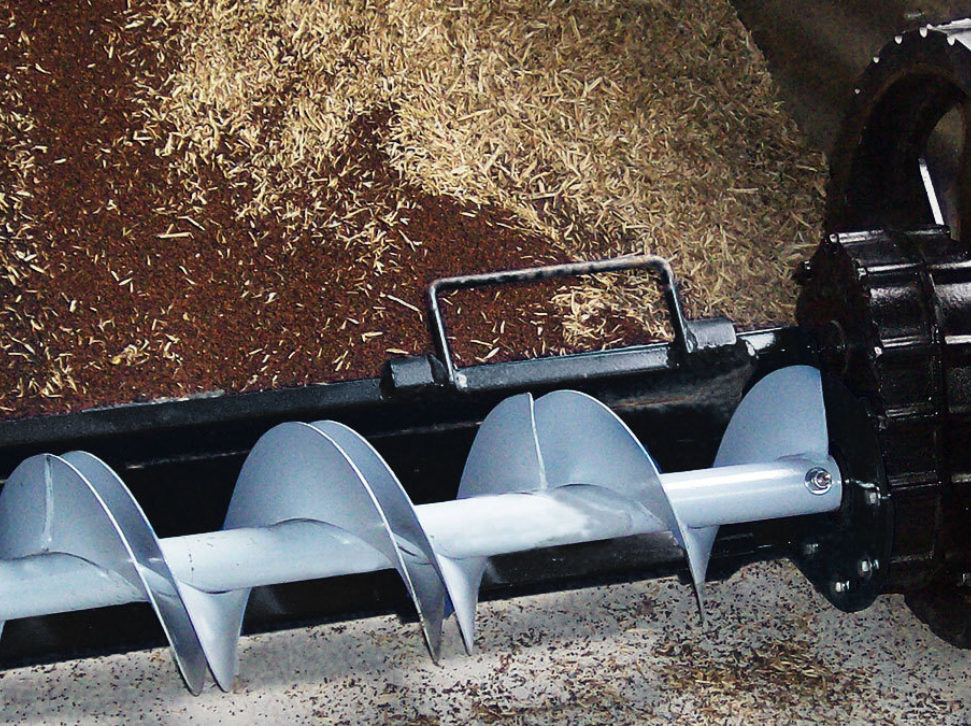

MORE DURABLE AUGER FLIGHTING.
‚ÄčOur auger flighting has a thicker outer edge that allows you to move 100 BPH more than traditional flighting. It also increases the auger's lifespan by over 50%.

MORE CAPACITY AT CENTER SUMP.
The Center Sump features an extended width that allows for more grain to reach the sump through all 360° of the sweep rotation.

RELIABLE SWEEP TRACTION.
Our 18" vulcanized rubber SureGrip Wheel provides 16:1 gear reduction and comes standard on our gear sweeps. It ensures positive traction and forward movement into the grain pile.

LESS GRAIN FLOW OVER THE SWEEP.
A Deflector Plate is mounted on the sweep backboard directly above the hanger bearing. The plate eliminates grain flow over the top of the bearing and deflects it back down into the auger.

ADJUSTABLE BACKBOARD.
Easily adjust your sweep backboard to achieve the right height for optimal cleanout in your bin. Loosen the bolts; rock the backboard forward or backwards to the desired height and re-tighten the bolts.

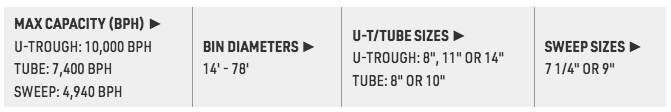

• 8", 11" or 14" U-Trough Unload systems
• 8" or 10" Tube Unload systems
• 7 1/4" or 9" gear-driven bin sweep
• Rack & Pinion gate controls
• Quick-detach motor mount
• Premium Powder Coated Finish

OPTIONS:

ELIMINATE PLUGGING/BLOCKAGE.
The Clump Breaker is mounted to the sweep's gearbox and prevents plugging at the center sump by breaking up frozen or clumped material.

CONTINUOUS UNLOAD.
Our optional Emergency Sump allows you to continue to unload even if the center sump becomes blocked.

Other Options:

• Electric or Hydraulic models
• Incline Powerhead

View Product Brochure     View Product Flyer


Grain Push System

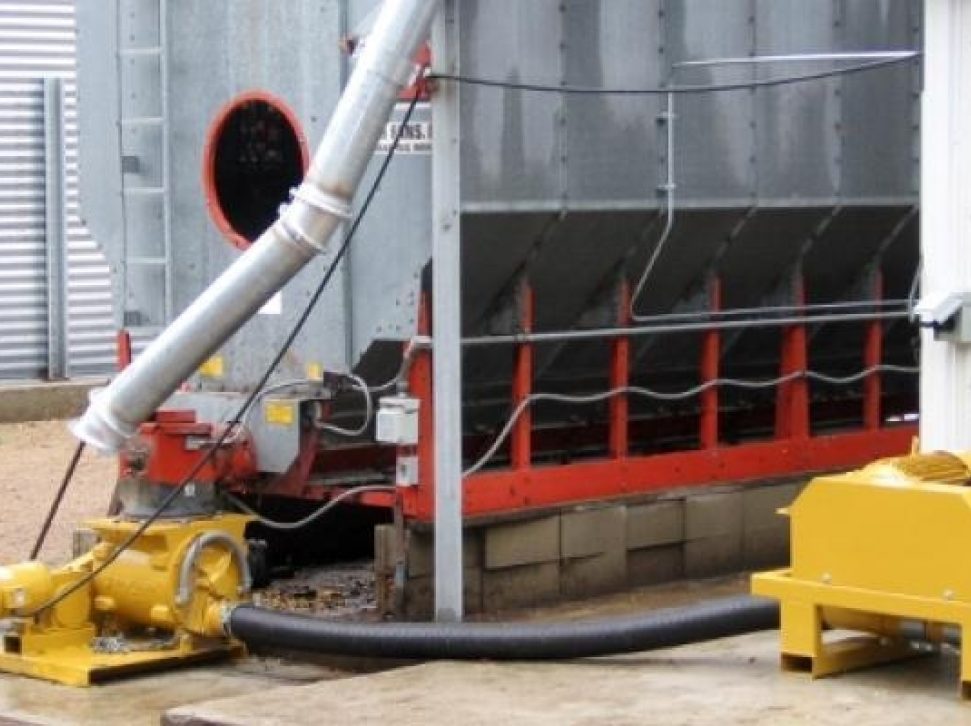

The Grain Push System is a pneumatic air system used for conveying low volumes of grain at a bin site. It is used primarily in conjunction with a batch grain dryer, where the dry grain exits the dryer into the air conveying system & is piped to a storage structure.

The Grain Push System it ideal for transferring grain to or from: dryers, trucks, dump pits, hoppers, storage bins, silos, mixers, bunkers, railcars, and feed bins.

• Versatile, powerful, and easy to install.
• Portable enough to service several grain transfer sites.
• Convenient fork lift base & lifting loops make moving the GPS a simple operation.
• Efficiently and gently "push" grain 100′ to 250′(30m to 75m) or more.

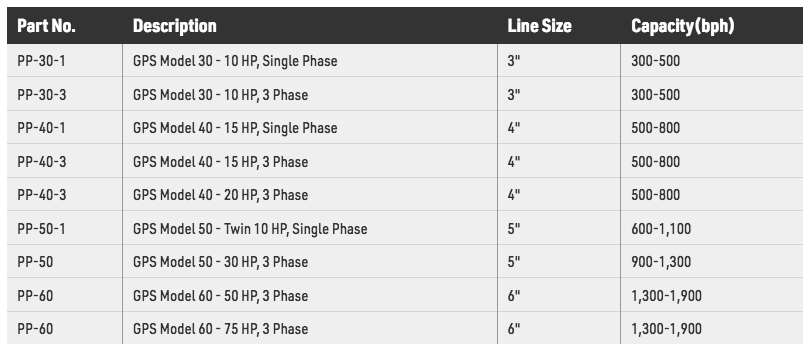

Specifications
Capacities above are calculated with 100′ piping - consisting of 70′ horizontal, 30′ vertical and two 90° elbows - moving US #2 corn. Capacities will vary depending on distances, product density, humidity, altitude, and piping set up. Long angles on piping should be avoided. An electric is required for operation of the GPS. Although the panel is offered by the factory, it is recommended that the panel be purchased through your local electrician to meet your individual needs and to comply with local codes. The use of a surge bin or hopper is recommended to feed the GPS ensuring maximum capacity. This will also keep grain quality high as operating at 3/4 capacity or less increases damage.

System Requirements
The use of a surge bin or hopper to feed the GPS is recommended when transferring grain from a dryer. This will allow operation at maximum capacity and provide optimum grain protection. It is also recommended that electric panels be purchased through customer′s local electrician for specific needs and codes. Upon request, electric panels can be provided.
